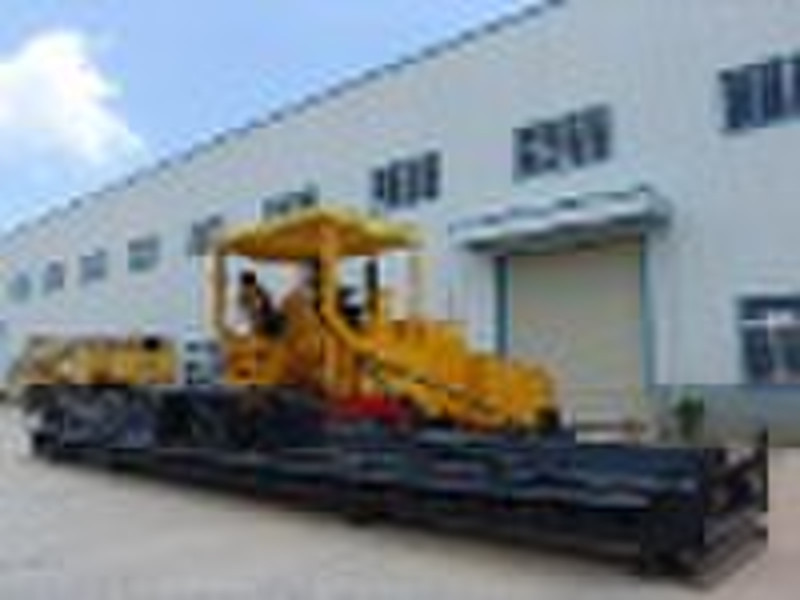

DTU12000 paver

paver: 1.Adopted with an advanced,mature and reliable CUMMINS 6CTAA8.3-C240 water-cooling diesel engine,with a strong power. 2.Uses Germany Rexorth MC6H microcompute control,has may carry on the urgent control theemergency system. 3.Uses Germany Rexorth high quality hydraulic system,driving system use double pumps,double motor and double speed reducer drive type. 4.The spiral cotton material by ultrasonic wave material position sensor proportional control. 5.The tamper bar and vibrator compaction system can stepless speed regulation. 6.Auto-levelling system:two vrtical and one horizontal auto-levelling instrument use well-knownbrand. 7.Contorl panel shows directly and clearly all working functions,paving,travelling speed,and could be mounted either on right or left side. asphalt paver main technical data DTU12000 Max working width m 12 Max paving thickness mm 350 theoretical productivity t/h 800 paving speed m/min 0 16 traveling speed km/h 2.5 paving smoothness mm/3m ≤3.0 slope leveling tolerance % ±0.05% operating wight t 29 engine type 6CTAA8.3-C240 engine speed rpm 2200 engine rated output kw 179 hopper capacity t 14 tank capacity L 300 electrical control system MC6H overall dimension mm 6440×2600×3890
